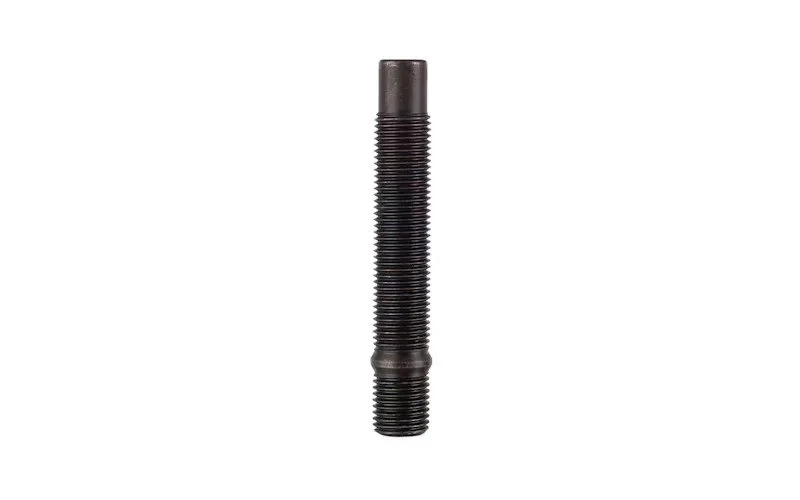

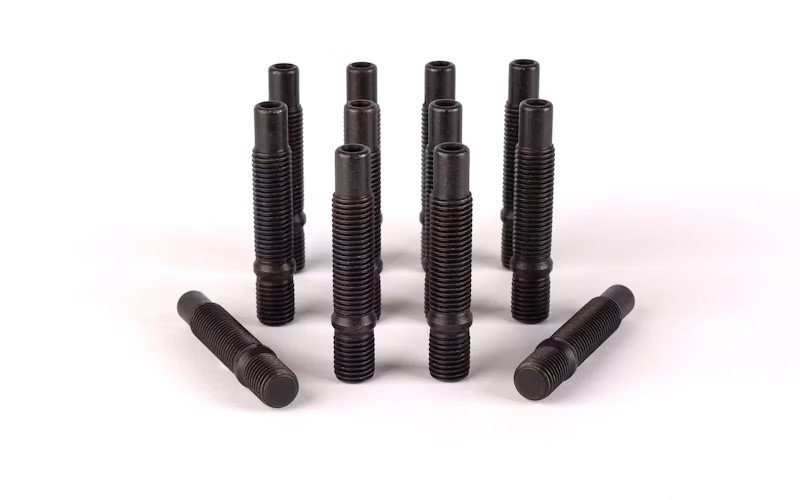

Screw in Hub Conversion Studs HT 10.9 Grade Self Colour are manufactured from heat treated carbon steel and are 10.9 HT.
Stud specification:
Total Length end to end = 68mm, 75mm, 82mm or 90mm.
Threaded Length from Hip to Blank = 38mm (68mm stud), 44mm (75mm stud), 51mm (82mm stud) or 60mm (90mm stud).
Screw In thread length = 14mm
Hip Length between threaded sections = 5mm
Blank Tip Length = 12mm
Required Allen Key = 5mm
Visit www.pcdparts.co.uk for more information
